DOUBLE LAMINATED KNIT - Activated Carbon Cloth

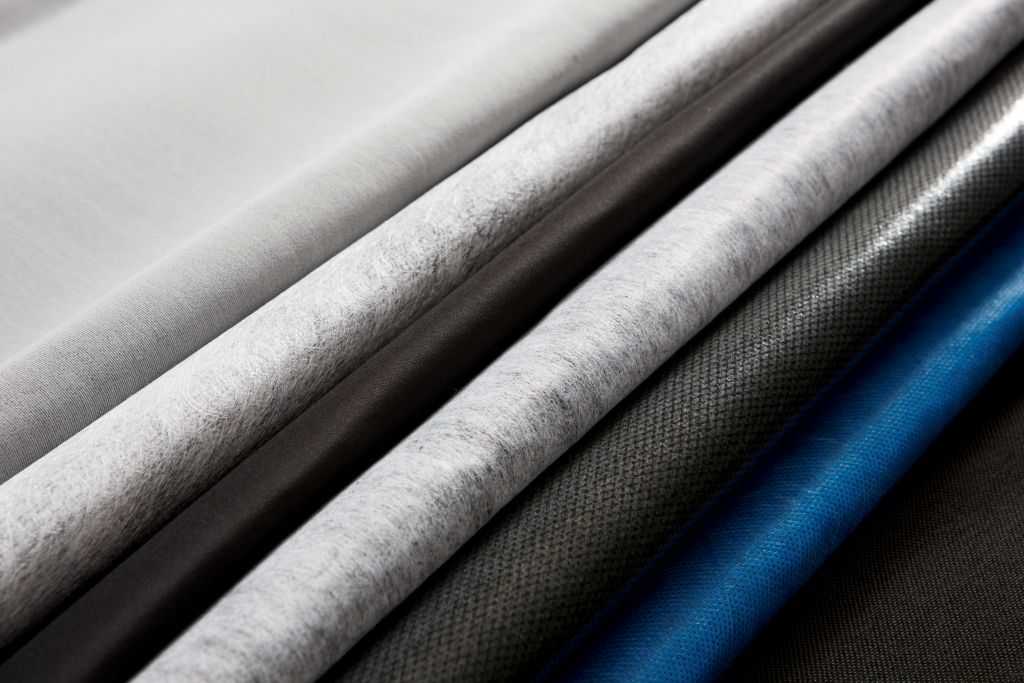

CarboCloth™ LAMINATED Activated Carbon Cloth is made with one layer of knitted activated carbon cloth laminated to one layer of durable padded fleece fabric. When purchasing more than one meter, the fabric will come as one piece, for example: if you order five meters, the fabric will be five continuous meters.
SKU
S-7710
In stock
CarboCloth™ DOUBLE LAMINATED KNIT Activated Carbon Cloth combines our Military clothing with activated carbon clothlightweight knitted carbon cloth with a layer of polyester backing material on both sides. The polyester makes the fabric extremely durable and strong, and protects the cloth from abrasion and other stresses which is incredibly useful for clothing applications in particular.
Comes 35” wide Sold in increments of Meters Only
Also available in SINGLE LAMINATED
Write Your Own Review
Product Description:
Knitted Activated Carbon Cloth laminated on both sides to a black light weight polyester fabric
Composition of product:

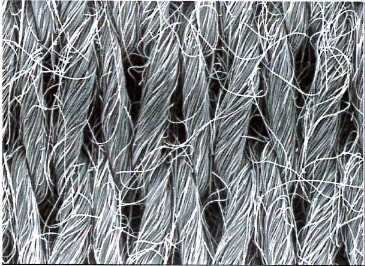

A double jersey knitted fabric, black to grey in colour, consisting wholly of activated carbon fibers laminated on both sides to a black light weight polyester fabric using a polyamide coating. Variation in colour of the ACC is possible; however this does not affect the performance.
Surface Density (CCCD Internal Test method based on BS EN 12127):
The typical dry weight of the ACC shall be in the range 90 to 130 grams per square meter (gsm).
Activity, Static (CCCD Internal Test method):
The uptake of Ethyl Acetate vapour for the ACC in dry air shall not be less than 33% w/w.
Thickness (CCCD Internal Test method based on BS EN ISO 5084):
The thickness shall be in the range 0.5 to 1.5mm.
Standard roll size:
Length 100 metres Width 85 centimetres
Other roll lengths and widths are available on request
Core Size:
32mm internal diameter cardboard cores (if slit 76mm diameter cores)
Joints:
Individual pieces are end-to-end laminated using thermally fusible tape, to form continuous rolls, unless otherwise specified (6 joints per 100 metres unless otherwise specified).
Faults:
Small faults are repaired with a 2cm disc of the appropriate grade of carbon cloth bonded over the fault with thermally fusible web. (Maximum 3 faults per metre permitted unless otherwise specified).
Packaging:
Rolls are first wrapped in polythene sheet, then ‘large bubble-wrap’, and are finally wrapped in an outer wrapping of polythene tubing.
Shelf Life:
In optimum storage conditions* the adsorption capacity of the ACC will remain unaffected up to a period of five years from the date of dispatch.
*Inert atmosphere free from odour/vapour at standard temperature and pressure, free from moisture and kept in original packaging.
CarboCloth™ DOUBLE LAMINATED KNIT Activated Carbon Cloth combines our Military clothing with activated carbon clothlightweight knitted carbon cloth with a layer of polyester backing material on both sides. The polyester makes the fabric extremely durable and strong, and protects the cloth from abrasion and other stresses which is incredibly useful for clothing applications in particular.
Comes 35” wide Sold in increments of Meters Only
Also available in SINGLE LAMINATED
